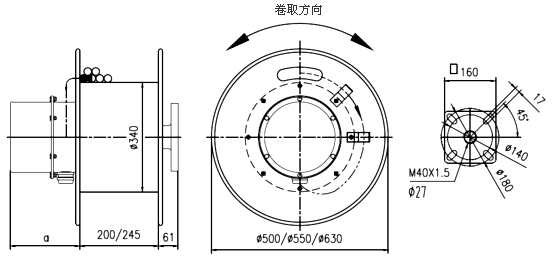

S34H系列弹簧驱动电缆卷筒


产品介绍

PDF资料下载...

技术参数:Technical parameters
材料及构造:卷筒本体及安装法兰采用钢件制造。弹簧为高寿命高等级的弹簧钢。

Materials &Structurction: The drum body and mounting flange are made of steel. Spring is the high life high-grade spring steel.

卷绕速度:水平卷绕 63m/min  垂直卷绕 30m/min
Winding speed: Horizontal : 63m/min   Vertical winding: : 30m/min

卷取长度:水平最大卷绕长度:50米,垂直最大卷绕长度 25米
Winding length: The Max Horizontal winding length: 50m, The Max Vertical winding length:25m

电缆参数:外径Max Φ25mm,重量Max 1.2kg/m;

Cable Spec: MaxOD: Φ25mm, Max weight: Max 1.2kg/m;

电气参数:Vmax 500V,Imax 60A

Electric parameter: Vmax 500V,Imax 60A
防护等级:IP54

Grade: IP54
